Refrigerated circulators DYNEO™ DD

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.

3.5" TFT colour display with multilingual user interface
Integrated programmer for 8 x 60 program steps
Easy pump switching between internal and external circulation
External pump connections (M16x1)
Infinitely adjustable pressure pump
USB connection
Space-saving cooling coil design yields more usable space in the bath tank
External Pt100 connection
Stainless steel bath tank including bath lid and drain tap
Removable ventilation grid
2 hose olives each suitable for hose inner diameter 8 and 12 mm included
Class III (FL) acc. to DIN 12876-1

Material bath:	Stainless steel
Temperature stability:	±0,01 °C
Max. flow rate:	27 l/min
Max. delivery pressure:	0.7 bar
Type of display:	TFT
With lid:	Yes
Heating capacity:	2 kW
IP code:	IP 21


Refrigerated circulators DYNEO™ DD

Item added to basket.

Refrigerated circulators DYNEO™ DD

continue shopping go to basket

Customers also bought:

Type	Volume bath	Temperature	Refrigerant	Cooling capacity at 20 °C kW	Opening (WxD)	Bath depth mm	Ext. dim. (WxDxH)	Weight kg	PK	Cat. No.
DD-200F	3 ... 4 l	-20 ... 200 °C	R134a	0,2	130 x 150 mm	150	230 x 390 x 650 mm	25.7	1	4663225
DD-200F	3 ... 4 l	-20 ... 200 °C	R290	0,2	130 x 150 mm	150	230 x 390 x 650 mm	25.7	1	4693943
DD-201F	3 ... 4 l	-20 ... 200 °C	R134a	0,2	130 x 150 mm	150	440 x 410 x 440 mm	24.7	1	4663226
DD-300F	3 ... 4 l	-25 ... 200 °C	R134a	0,3	130 x 150 mm	150	240 x 420 x 660 mm	27.7	1	4663227
DD-310F	3 ... 4 l	-30 ... 200 °C	R290	0,3	130 x 150 mm	150	230 x 400 x 650 mm	25.4	1	4685634
DD-310F	3 ... 4 l	-30 ... 200 °C	R449A	0,3	130 x 150 mm	150	230 x 400 x 650 mm	25.4	1	4685637
DD-449F	20 ... 26 l	-32 ... 200 °C	R290	0,44	280 x 350 mm	200	370 x 590 x 690 mm	39.5	1	4687384
DD-450F	3 ... 4 l	-30 ... 200 °C	R290	0,44	130 x 150 mm	150	230 x 400 x 650 mm	27.4	1	4685640
DD-450F	3 ... 4 l	-30 ... 200 °C	R449A	0,44	130 x 150 mm	150	230 x 400 x 650 mm	27.4	1	4685643
DD-601F	8 ... 10 l	-35 ... 200 °C	R449A	0,6	220 x 150 mm	200	330 x 470 x 740 mm	38.2	1	4663229
DD-800F	5 ... 7.5 l	-40 ... 200 °C	R1270	0,84	180 x 130 mm	150	330 x 470 x 700 mm	42	1	4692238
DD-1000F	5 ... 7.5 l	-50 ... 200 °C	R449A	1	180 x 130 mm	150	420 x 490 x 740 mm	51.2	1	4663231
DD-1200F	5 ... 7.5 l	-50 ... 200 °C	R1270	1,24	180 x 130 mm	150	330 x 470 x 700 mm	44	1	4692241
DD-1201F	48 ... 56 l	-40 ... 100 °C	R1270	1,25	350 x 400 mm	300	450 x 640 x 950 mm	68	1	4716003
DD-1200FW	5 ... 7.5 l	-50 ... 200 °C	R1270	1,24	180 x 130 mm	150	330 x 470 x 700 mm	44	1	4693946

Type DD-200F

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,2kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight 25.7kg

Cat. No. 4.663 225

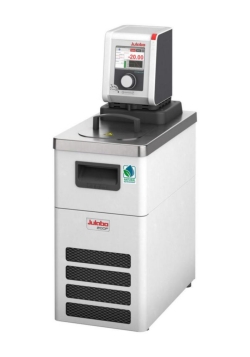

Type DD-200F

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,2kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight 25.7kg

Cat. No. 4.693 943

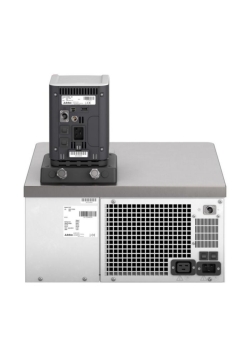

Type DD-201F

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,2kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 440 x 410 x 440 mm(WxDxH)

Weight 24.7kg

Cat. No. 4.663 226

Type DD-300F

Volume bath 3 ... 4 l

Temperature -25 ... 200 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,3kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 240 x 420 x 660 mm(WxDxH)

Weight 27.7kg

Cat. No. 4.663 227

Type DD-310F

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,3kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.4kg

Cat. No. 4.685 634

Type DD-310F

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,3kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.4kg

Cat. No. 4.685 637

Type DD-449F

Volume bath 20 ... 26 l

Temperature -32 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,44kW

Opening (WxD) 280 x 350 mm

Bath depth 200mm

Ext. dim. 370 x 590 x 690 mm(WxDxH)

Weight 39.5kg

Cat. No. 4.687 384

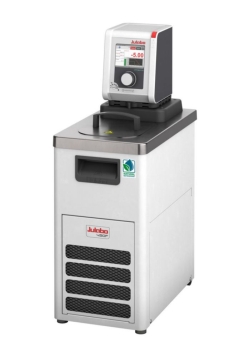

Type DD-450F

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,44kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 27.4kg

Cat. No. 4.685 640

Type DD-450F

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,44kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 27.4kg

Cat. No. 4.685 643

Type DD-601F

Volume bath 8 ... 10 l

Temperature -35 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,6kW

Opening (WxD) 220 x 150 mm

Bath depth 200mm

Ext. dim. 330 x 470 x 740 mm(WxDxH)

Weight 38.2kg

Cat. No. 4.663 229

Type DD-800F

Volume bath 5 ... 7.5 l

Temperature -40 ... 200 °C

Refrigerant R1270

Cooling capacity at 20 °C 0,84kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 42kg

Cat. No. 4.692 238

Type DD-1000F

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 1kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 420 x 490 x 740 mm(WxDxH)

Weight 51.2kg

Cat. No. 4.663 231

Type DD-1200F

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,24kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 44kg

Cat. No. 4.692 241

Type DD-1201F

Volume bath 48 ... 56 l

Temperature -40 ... 100 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,25kW

Opening (WxD) 350 x 400 mm

Bath depth 300mm

Ext. dim. 450 x 640 x 950 mm(WxDxH)

Weight 68kg

Cat. No. 4.716 003

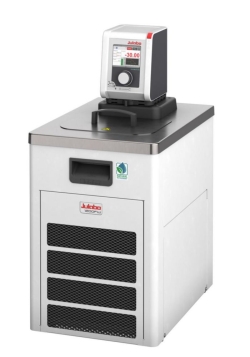

Type DD-1200FW

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,24kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 44kg

Cat. No. 4.693 946
