Refrigerated circulators DYNEO™ DD, with RS232 interface

Refrigerated circulators are suitable for temperature control for internal and external applications. Operation is simple and intuitive via the central rotary knob on the front of the unit.

3.5" TFT colour display with multilingual user interface
Integrated programmer for 8 x 60 program steps
Easy pump switching between internal and external circulation
External pump connections (M16x1)
Infinitely adjustable pressure pump
USB connection
Space-saving cooling coil design yields more usable space in the bath tank
External Pt100 connection
Stainless steel bath tank including bath lid and drain tap
Removable ventilation grid
2 hose olives each suitable for hose inner diameter 8 and 12 mm included
Class III (FL) acc. to DIN 12876-1

RS232 interface

Material bath:	Stainless steel
Temperature stability:	±0,01 °C
Max. flow rate:	27 l/min
Max. delivery pressure:	0.7 bar
Type of display:	TFT
With lid:	Yes
Heating capacity:	2 kW
IP code:	IP 21


Refrigerated circulators DYNEO™ DD, with RS232 interface

Item added to basket.

Refrigerated circulators DYNEO™ DD, with RS232 interface

continue shopping go to basket

Customers also bought:

Type	Volume bath	Temperature	Refrigerant	Cooling capacity at 20 °C kW	Opening (WxD)	Bath depth mm	Ext. dim. (WxDxH)	Weight kg	PK	Cat. No.
DD-200F.D	3 ... 4 l	-20 ... 200 °C	R134a	0,2	130 x 150 mm	150	230 x 390 x 650 mm	25.7	1	4663251
DD-200F.D	3 ... 4 l	-20 ... 200 °C	R290	0,2	130 x 150 mm	150	230 x 390 x 650 mm	25.7	1	4693945
DD-201F.D	3 ... 4 l	-20 ... 200 °C	R134a	0,2	130 x 150 mm	150	440 x 410 x 440 mm	24.7	1	4663252
DD-300F.D	3 ... 4 l	-25 ... 200 °C	R134a	0,3	130 x 150 mm	150	240 x 420 x 660 mm	27.7	1	4663253
DD-310F.D	3 ... 4 l	-30 ... 200 °C	R290	0,3	130 x 150 mm	150	230 x 400 x 650 mm	25.4	1	4685636
DD-310F.D	3 ... 4 l	-30 ... 200 °C	R449A	0,3	130 x 150 mm	150	230 x 400 x 650 mm	25.4	1	4685639
DD-449F.D	20 ... 26 l	-32 ... 200 °C	R290	0,44	280 x 350 mm	200	370 x 590 x 690 mm	39.5	1	4687386
DD-450F.D	3 ... 4 l	-30 ... 200 °C	R290	0,44	130 x 150 mm	150	230 x 400 x 650 mm	27.4	1	4685642
DD-450F.D	3 ... 4 l	-30 ... 200 °C	R449A	0,44	130 x 150 mm	150	230 x 400 x 650 mm	27.4	1	4685645
DD-601F.D	8 ... 10 l	-35 ... 200 °C	R449A	0,6	220 x 150 mm	200	330 x 470 x 740 mm	38.2	1	4663255
DD-800F.D	5 ... 7.5 l	-40 ... 200 °C	R1270	0,84	180 x 130 mm	150	330 x 470 x 700 mm	42	1	4692240
DD-1000F.D	5 ... 7.5 l	-50 ... 200 °C	R449A	1	180 x 130 mm	150	420 x 490 x 740 mm	51.2	1	4663257
DD-1200F.D	5 ... 7.5 l	-50 ... 200 °C	R1270	1,24	180 x 130 mm	150	330 x 470 x 700 mm	44	1	4692243
DD-1201F.D	48 ... 56 l	-40 ... 100 °C	R1270	1,25	350 x 400 mm	300	450 x 640 x 950 mm	68	1	4716005
DD-1200FW.D	5 ... 7.5 l	-50 ... 200 °C	R1270	1,24	180 x 130 mm	150	330 x 470 x 700 mm	44	1	4693948

Type DD-200F.D

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,2kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight 25.7kg

Cat. No. 4.663 251

Type DD-200F.D

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,2kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight 25.7kg

Cat. No. 4.693 945

Type DD-201F.D

Volume bath 3 ... 4 l

Temperature -20 ... 200 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,2kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 440 x 410 x 440 mm(WxDxH)

Weight 24.7kg

Cat. No. 4.663 252

Type DD-300F.D

Volume bath 3 ... 4 l

Temperature -25 ... 200 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,3kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 240 x 420 x 660 mm(WxDxH)

Weight 27.7kg

Cat. No. 4.663 253

Type DD-310F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,3kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.4kg

Cat. No. 4.685 636

Type DD-310F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,3kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.4kg

Cat. No. 4.685 639

Type DD-449F.D

Volume bath 20 ... 26 l

Temperature -32 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,44kW

Opening (WxD) 280 x 350 mm

Bath depth 200mm

Ext. dim. 370 x 590 x 690 mm(WxDxH)

Weight 39.5kg

Cat. No. 4.687 386

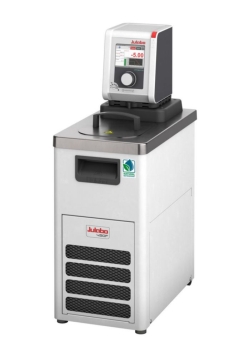

Type DD-450F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R290

Cooling capacity at 20 °C 0,44kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 27.4kg

Cat. No. 4.685 642

Type DD-450F.D

Volume bath 3 ... 4 l

Temperature -30 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,44kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 27.4kg

Cat. No. 4.685 645

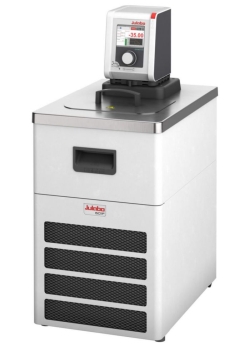

Type DD-601F.D

Volume bath 8 ... 10 l

Temperature -35 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,6kW

Opening (WxD) 220 x 150 mm

Bath depth 200mm

Ext. dim. 330 x 470 x 740 mm(WxDxH)

Weight 38.2kg

Cat. No. 4.663 255

Type DD-800F.D

Volume bath 5 ... 7.5 l

Temperature -40 ... 200 °C

Refrigerant R1270

Cooling capacity at 20 °C 0,84kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 42kg

Cat. No. 4.692 240

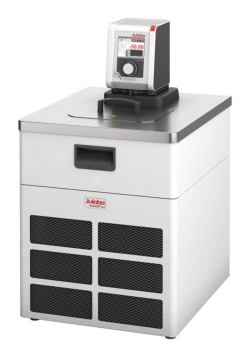

Type DD-1000F.D

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R449A

Cooling capacity at 20 °C 1kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 420 x 490 x 740 mm(WxDxH)

Weight 51.2kg

Cat. No. 4.663 257

Type DD-1200F.D

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,24kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 44kg

Cat. No. 4.692 243

Type DD-1201F.D

Volume bath 48 ... 56 l

Temperature -40 ... 100 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,25kW

Opening (WxD) 350 x 400 mm

Bath depth 300mm

Ext. dim. 450 x 640 x 950 mm(WxDxH)

Weight 68kg

Cat. No. 4.716 005

Type DD-1200FW.D

Volume bath 5 ... 7.5 l

Temperature -50 ... 200 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,24kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 44kg

Cat. No. 4.693 948
