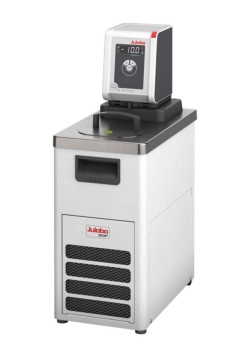

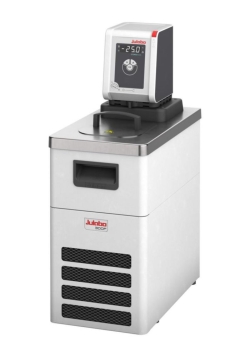

Refrigerated circulators CORIO™ CD

Refrigerated circulators are suitable for internal and external standard temperature applications as well as routine work in laboratories and industry.

Bright, white, easy-to-read display
Easy pump switching between internal and external circulation
External pump connections (M16x1)
USB connection
Space-saving cooling coil design yields more usable space in the bath tank
Stainless steel bath tank including bath lid and drain tap
Removable ventilation grid
Refrigeration unit without lateral ventilation openings
2 hose olives each suitable for hose inner diameter 8 and 12 mm included
Class III (FL) acc. to DIN 12876-1

Material bath:	Stainless steel
Temperature stability:	±0,03 °C
Max. flow rate:	15 l/min
Max. delivery pressure:	0.35 bar
With lid:	Yes
Heating capacity:	2 kW
IP code:	IP 21


Refrigerated circulators CORIO™ CD

Item added to basket.

Refrigerated circulators CORIO™ CD

continue shopping go to basket

Customers also bought:

Type	Volume bath	Temperature	Refrigerant	Cooling capacity at 20 °C kW	Opening (WxD)	Bath depth mm	Ext. dim. (WxDxH)	Weight kg	PK	Cat. No.
CD-200F	3 ... 4 l	-20 ... 150 °C	R134a	0,22	130 x 150 mm	150	230 x 390 x 650 mm	26	1	4658008
CD-200F	3 ... 4 l	-20 ... 150 °C	R290	0,22	130 x 150 mm	150	230 x 390 x 650 mm	26	1	4693939
CD-201F	3 ... 4 l	-20 ... 150 °C	R134a	0,22	130 x 150 mm	150	440 x 410 x 440 mm	25	1	4658009
CD-300F	3 ... 4 l	-25 ... 150 °C	R134a	0,31	130 x 150 mm	150	240 x 420 x 660 mm	28	1	4658010
CD-310F	3 ... 4 l	-30 ... 150 °C	R290	0,31	130 x 150 mm	150	230 x 400 x 650 mm	25.2	1	4685626
CD-310F	3 ... 4 l	-30 ... 150 °C	R449A	0,31	130 x 150 mm	150	230 x 400 x 650 mm	25.2	1	4685627
CD-449F	20 ... 26 l	-32 ... 150 °C	R290	0,45	280 x 350 mm	200	370 x 590 x 690 mm	39.5	1	4687382
CD-450F	3 ... 4 l	-30 ... 150 °C	R290	0,45	130 x 150 mm	150	230 x 400 x 650 mm	25.1	1	4685628
CD-450F	3 ... 4 l	-30 ... 150 °C	R449A	0,45	130 x 150 mm	150	230 x 400 x 650 mm	25.1	1	4685629
CD-600F	5 ... 7.5 l	-35 ... 150 °C	R449A	0,6	220 x 150 mm	150	330 x 470 x 690 mm	36	1	4658011
CD-601F	8 ... 10 l	-35 ... 150 °C	R449A	0,6	220 x 150 mm	200	330 x 470 x 740 mm	38.5	1	6283539
CD-800F	5 ... 7.5 l	-40 ... 150 °C	R1270	0,85	180 x 130 mm	150	330 x 470 x 700 mm	42	1	4692234
CD-1200F	5 ... 7.5 l	-40 ... 150 °C	R1270	1,25	180 x 130 mm	150	330 x 470 x 700 mm	42	1	4692235
CD-1201F	48 ... 56 l	-40 ... 100 °C	R1270	1,25	350 x 400 mm	300	450 x 640 x 950 mm	68	1	4716006

Type CD-200F

Volume bath 3 ... 4 l

Temperature -20 ... 150 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,22kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight 26kg

Cat. No. 4.658 008

Type CD-200F

Volume bath 3 ... 4 l

Temperature -20 ... 150 °C

Refrigerant R290

Cooling capacity at 20 °C 0,22kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 390 x 650 mm(WxDxH)

Weight 26kg

Cat. No. 4.693 939

Type CD-201F

Volume bath 3 ... 4 l

Temperature -20 ... 150 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,22kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 440 x 410 x 440 mm(WxDxH)

Weight 25kg

Cat. No. 4.658 009

Type CD-300F

Volume bath 3 ... 4 l

Temperature -25 ... 150 °C

Refrigerant R134a

Cooling capacity at 20 °C 0,31kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 240 x 420 x 660 mm(WxDxH)

Weight 28kg

Cat. No. 4.658 010

Type CD-310F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R290

Cooling capacity at 20 °C 0,31kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.2kg

Cat. No. 4.685 626

Type CD-310F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,31kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.2kg

Cat. No. 4.685 627

Type CD-449F

Volume bath 20 ... 26 l

Temperature -32 ... 150 °C

Refrigerant R290

Cooling capacity at 20 °C 0,45kW

Opening (WxD) 280 x 350 mm

Bath depth 200mm

Ext. dim. 370 x 590 x 690 mm(WxDxH)

Weight 39.5kg

Cat. No. 4.687 382

Type CD-450F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R290

Cooling capacity at 20 °C 0,45kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.1kg

Cat. No. 4.685 628

Type CD-450F

Volume bath 3 ... 4 l

Temperature -30 ... 150 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,45kW

Opening (WxD) 130 x 150 mm

Bath depth 150mm

Ext. dim. 230 x 400 x 650 mm(WxDxH)

Weight 25.1kg

Cat. No. 4.685 629

Type CD-600F

Volume bath 5 ... 7.5 l

Temperature -35 ... 150 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,6kW

Opening (WxD) 220 x 150 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 690 mm(WxDxH)

Weight 36kg

Cat. No. 4.658 011

Type CD-601F

Volume bath 8 ... 10 l

Temperature -35 ... 150 °C

Refrigerant R449A

Cooling capacity at 20 °C 0,6kW

Opening (WxD) 220 x 150 mm

Bath depth 200mm

Ext. dim. 330 x 470 x 740 mm(WxDxH)

Weight 38.5kg

Cat. No. 6.283 539

Type CD-800F

Volume bath 5 ... 7.5 l

Temperature -40 ... 150 °C

Refrigerant R1270

Cooling capacity at 20 °C 0,85kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 42kg

Cat. No. 4.692 234

Type CD-1200F

Volume bath 5 ... 7.5 l

Temperature -40 ... 150 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,25kW

Opening (WxD) 180 x 130 mm

Bath depth 150mm

Ext. dim. 330 x 470 x 700 mm(WxDxH)

Weight 42kg

Cat. No. 4.692 235

Type CD-1201F

Volume bath 48 ... 56 l

Temperature -40 ... 100 °C

Refrigerant R1270

Cooling capacity at 20 °C 1,25kW

Opening (WxD) 350 x 400 mm

Bath depth 300mm

Ext. dim. 450 x 640 x 950 mm(WxDxH)

Weight 68kg

Cat. No. 4.716 006

Accessories:

	Hose olives for Refrigerated circulators / Julabo
	Tubing insulations for refrigerated and heating circulators / Julabo
	Test tube racks for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™ / Julabo
	Lockable bath cover for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™ / Julabo
	Telescopic bridges for heating and refrigerated circulators / Julabo
	Variable platform for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™ / Julabo
	Temperature hoses, stainless steel 1.4404, single insulation / Julabo
	Water bath preservative liquid Aqua Stabil / Julabo
	Tempering liquids / Julabo
