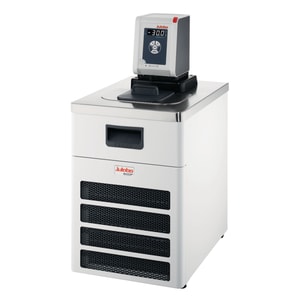

Refrigerated circulator CORIO™ CP-1001F

Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.

  • Bright, white, easy-to-read display
  • Easy pump switching between internal and external circulation
  • External pump connections (M16x1)
  • Infinitely adjustable pressure pump
  • USB connection
  • RS232 interface
  • Timer adjustable up to 999 minutes
  • Space-saving cooling coil design yields more usable space in the bath tank
  • Stainless steel bath tank including bath lid and drain tap
  • Removable ventilation grid
  • Refrigeration unit without lateral ventilation openings
  • Unique early warning system for low liquid level
  • Class III (FL) acc. to DIN 12876-1


Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
  • With refrigerant R449A
Temp. range:-38 ... 100 °C
Temp. Stability:±0,03 °C
Flow rate:8 ... 27 l / min.
Delivery pressure, max.:0.70 bar
Cooling capacity kW at 20/0/-20°C:1.0 / 0.9 / 0.32
Heating capacity:2 kW
Bath opening:350 x 410 mm
Bath tank depth:300 mm
External dimensions (WxDxH):450 x 640 x 950 mm
Plug type:EU
Power supply:230 V, 50 ... 60 Hz
IP code:IP 21
Refrigerated circulator CORIO™ CP-1001F


Refrigerated circulator CORIO™ CP-1001F
 TypeCapacity
of the bath
litres
PK
CP-1001FProd.No.4.670 68848 ... 561
